ROCK QUARRY

PROGRESS

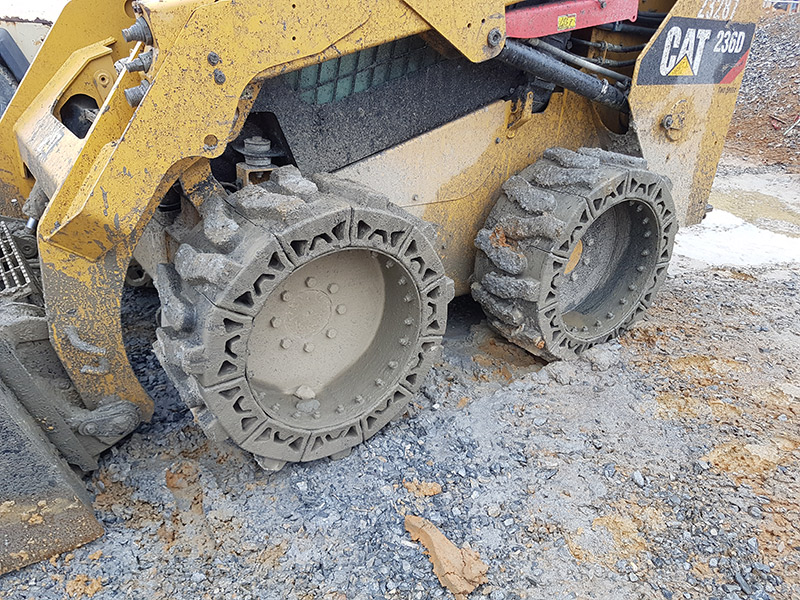

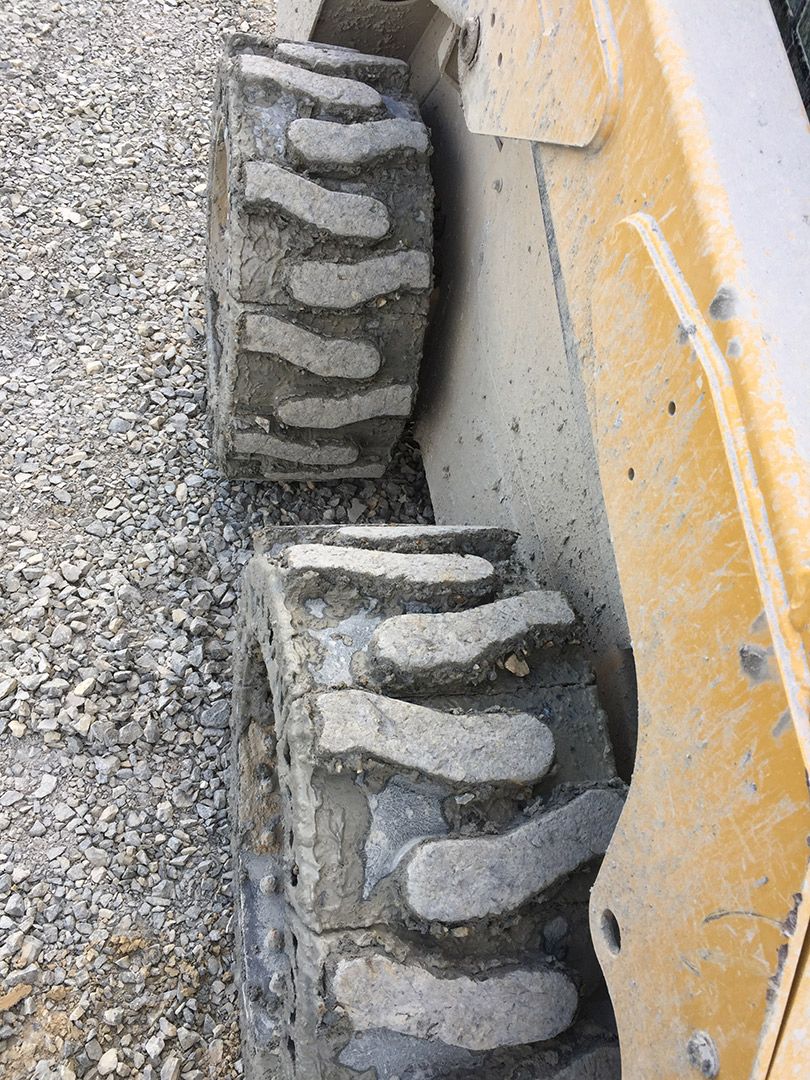

solid skid steer tire
INSTALL

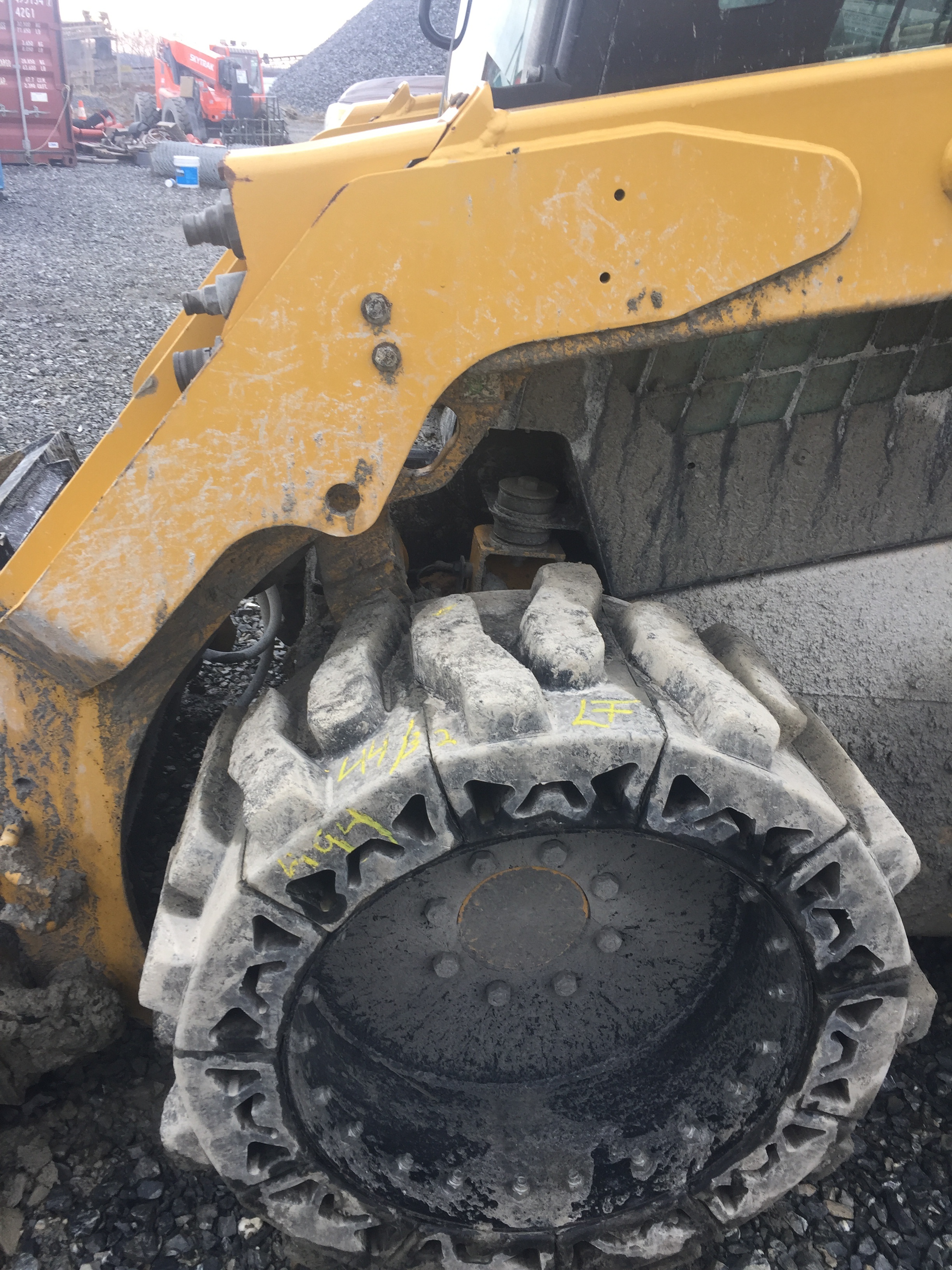

solid skid steer tire
300 hr

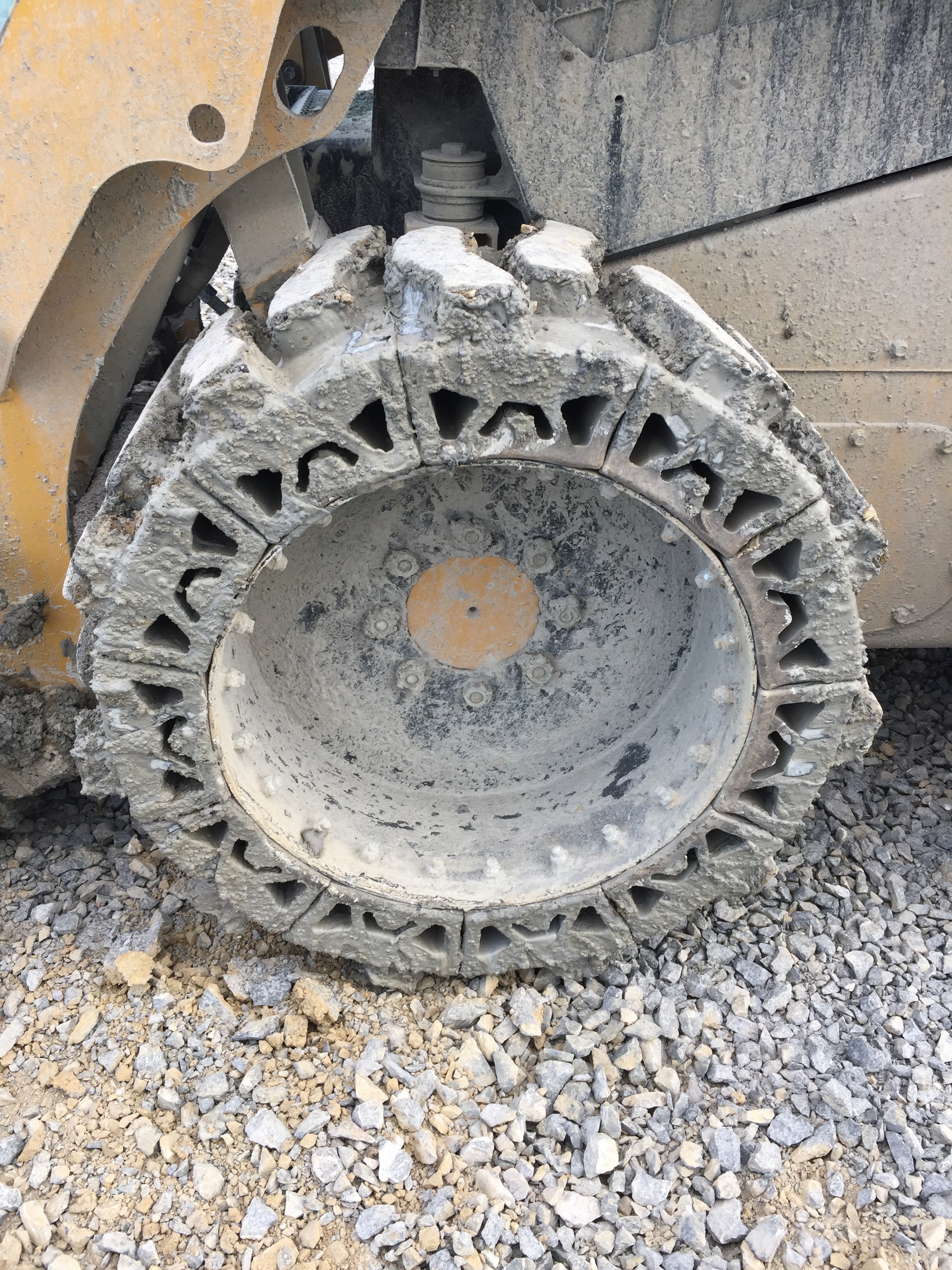

solid skid steer tire
500 hr
solid skid steer tire
750 hr

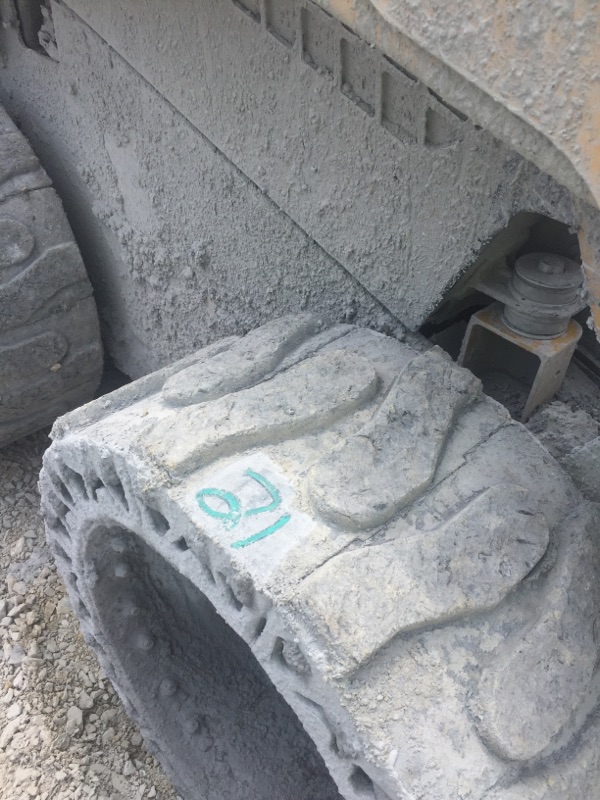

solid skid steer tire
877 hr

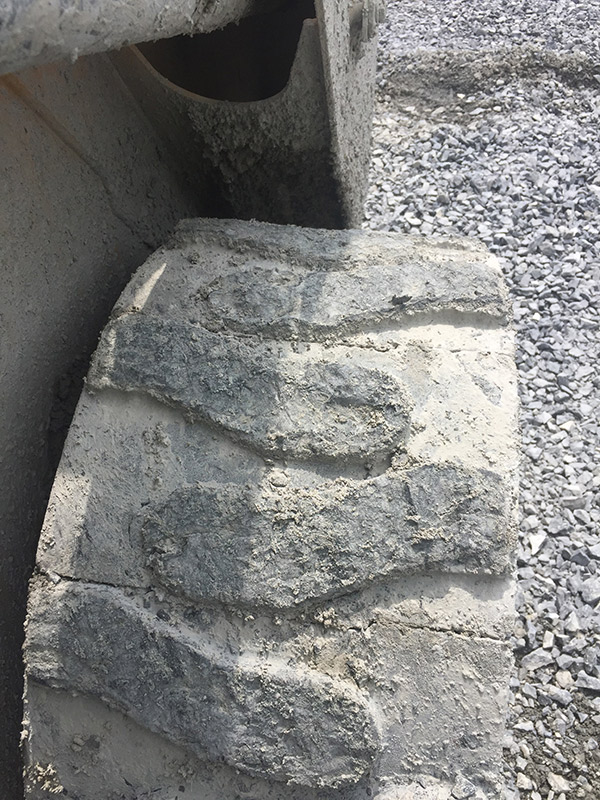

solid skid steer tire
1050 hr
TREAD DEPTH
(Inch /32 nd)
52/32nd 46/32nd 41/32nd 28/32nd 14/32nd 4/32nd
Percent Tread Remaining
(%)
100% 89% 79% 54% 27% 8%

ACTUAL
LIFESPAN (hr)
1050 hr ACTUAL COST
($/hr)
$1.10/hr USD HRS/32 WEAR
(hr/32nd WEAR)
20 hr / 32nd wear

Scroll left

Watch the Testimonial Video

Play button solid skid steer tires in a rock quarry

DETAILS

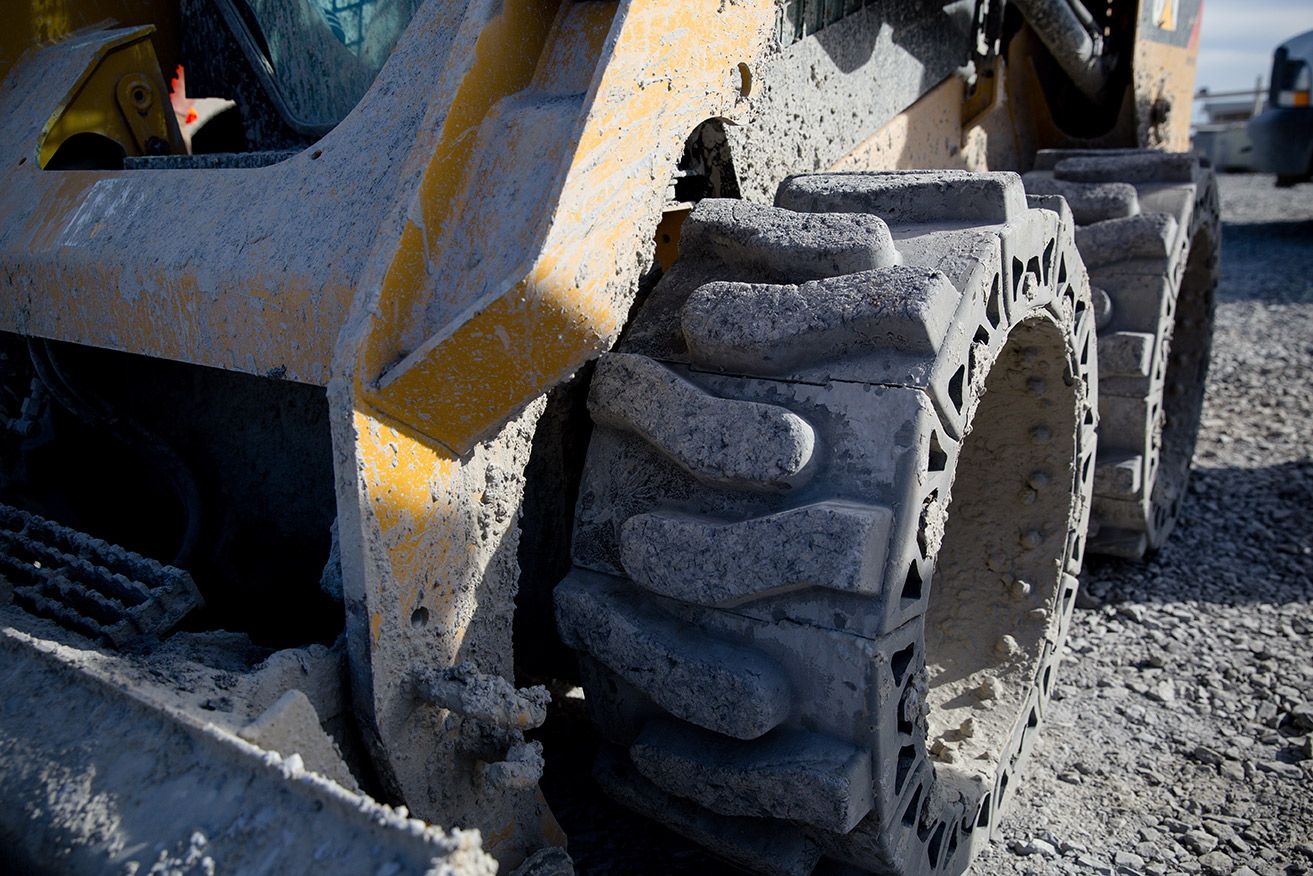

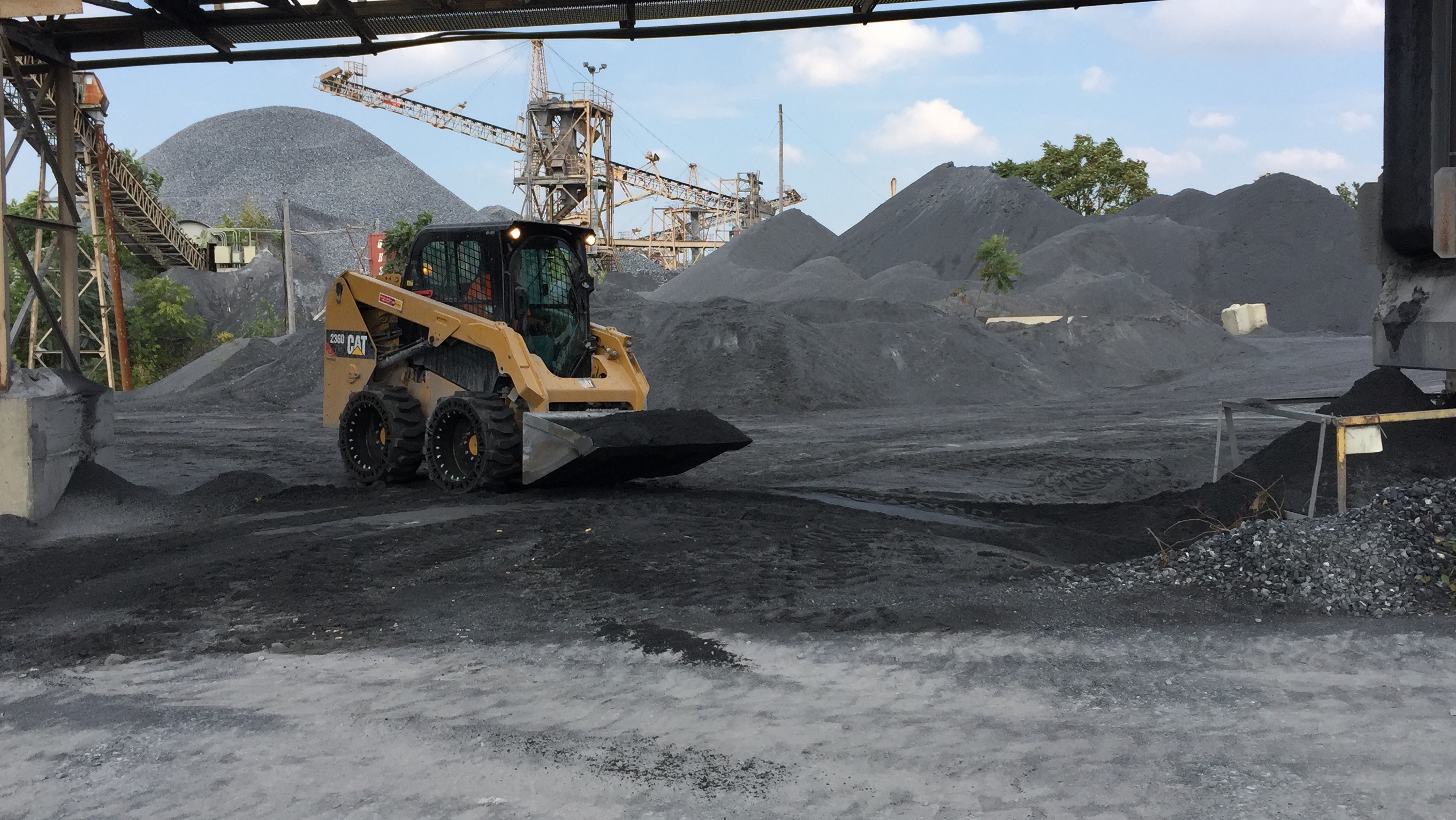

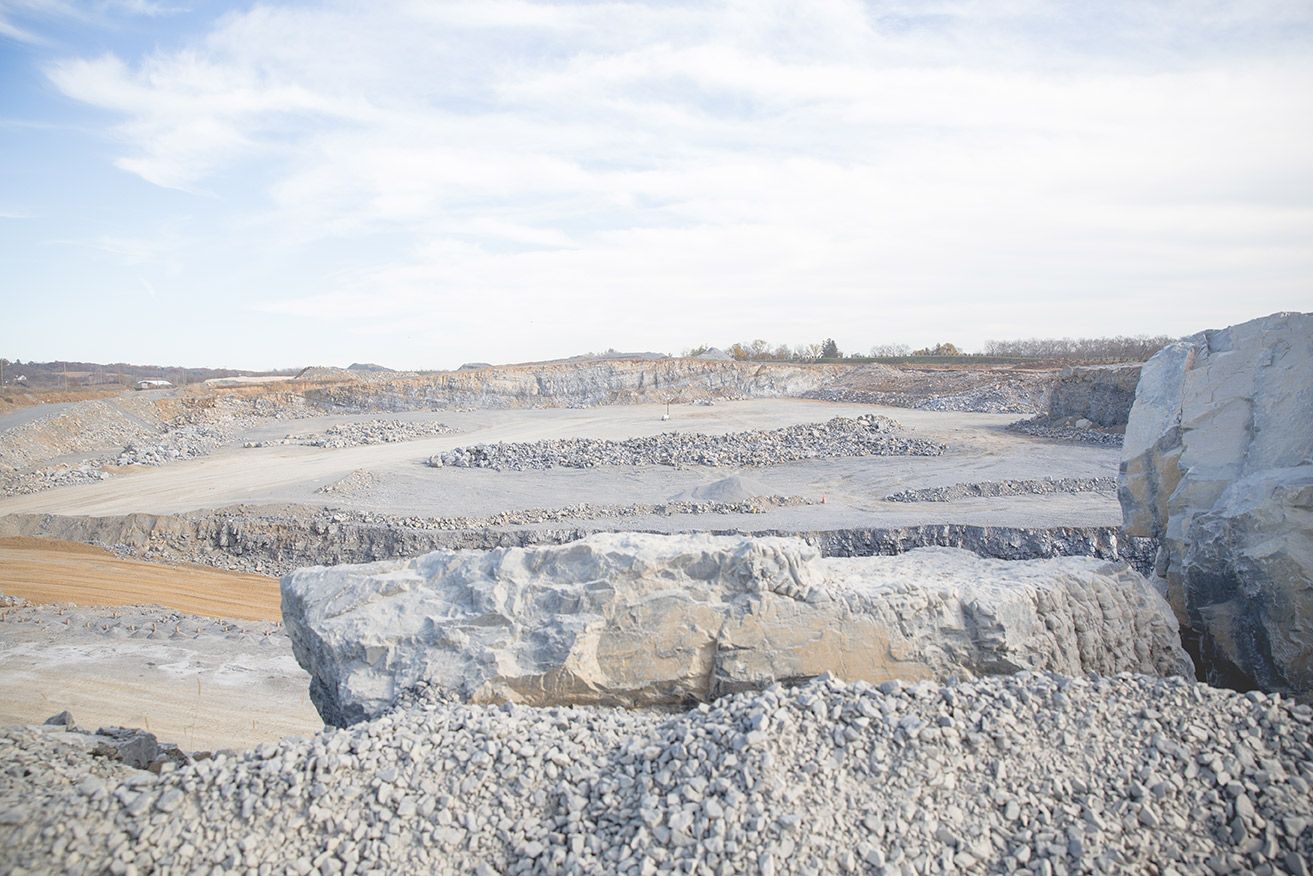

At an undisclosed location in Pennsylvania, Evolution Wheel tested our EWRS-AT series tire in a Rock Quarry application. This is a location where all makes and models of skid steer tires are tested and compared to see how well they stand up to the harsh conditions. Technicians continuously looked for tire wear, chunking and cuts, heel/toe wear and stress cracking during testing.

The average lifespan of a premium air filled tire here is 300hr and solid tires average 600hrs. The longest hours of use ever recorded here is 896hr using a pneumatic foam filled specialty tire. Evolution Wheel's EWRS-AT series tire smashed all records and got a total of 1050hrs of use before being pulled from a loss of traction at 8% tread remaining.

Rock quarry personnel operating the machine commented on increased performance with the tire in mucky conditions, reduced bounce, increased stability and a smoother more comfortable ride. After this set was pulled a new set of EWRS-AT tires went back on their machine so this customer would continue to see increased performance of Bobcat Tires and reduced costs.
